4.7.1 Multiscale Interpretation Part I

Multiscale Interpretation, Part 1

The next step in our experimental workflow is Step 4: hand tune the model parameters to improve the fit between your experimental data and your simulations

However, rather than immediately jump into the hand-tuning process, we will first examine how the External Drives interact with the local network in our simulations. The goal of these exercises is to help you build critical analysis skills that provide the foundation for interpreting and eventually tuning simulations to your own experimental data.

Thus far, we have only compared the loaded experimental data to the aggregate dipole from our simulation. But in order to better understand the generators of our data, we need to consider more than just the aggregate dipole. We need to examine the cell and circuit activity that underlies our signals.

The power of the HNN model is that it allows us to "peek inside" the simulated network and examine the cell- and circuit-level activity, such as the layer-specific dipoles, cell-specific spiking, local field potentials, and more. These are data that are often not readily accessible to researchers using standard MEG/EEG experimental paradigms with human subjects, unless the MEG/EEG recordings are accompanied by an invasive recording modality.

In this page (Part 1), we will focus on multiscale interpretation of the underlying network activity around the time of the first proximal drive. In the next page (Part 2), we will repeat the same exercise for the time around the first distal drive.

We will begin by making a new figure that more closely matches the standard GUI output, so that the interpretation of the figures matches what is said in the accompanying video. We will generate a figure that shows:

A histogram of spikes from the External Drives
The scaled and smoothed dipole from the default simulation
The loaded experimental data

In order to get a 1-to-1 match with the standard GUI output, we will also need to re-simulate the default network. The reason for this is that the GUI and the Python API initialize the default evoked drives with different seed (a.k.a. random number generator) values.

Since we want to match the GUI outputs as closely as possible, we need to use the same seed values.

Previously, we loaded the Evoked Drives using the add_erp_drives_to_jones_model() function. For this example, we will apply the drives from the exact .json configuration file used by the GUI. The only parameters that differ are the "event_seed" for each drive.


                        gui_default_url = (
    "https://raw.githubusercontent.com/jonescompneurolab/hnn-data/refs/heads/main/tutorial_networks/gui_defaults.json"
)
urlretrieve(
    gui_default_url,
    "gui_default.json",
);

We can then use the read_network_configuration function to load the file. Note that you can also save the network configuration file directly from the GUI to your local machine, and you can load the drives directly from your machine using the same function.


                        from hnn_core import read_network_configuration  # noqa

net_default_gui = read_network_configuration("gui_default.json")

We will then "re-simulate" the network, and apply the smoothing and scaling factors exactly as we did in the previous section.


                        # Remember that you need to select a backend and set the number
# of cores that is appropriate for your machine, as we did
# above in the "Simulate Default Network" section

# check the backend/number of cores we selected above
# --------------------------------------------------
print(
    f"Selected backend: {chosen_backend}",
    f" Number of cores: {ncores}",
    "\n" + "-" * 50 + "\n",
    sep="\n",
)

# re-run the simulation with the updated seed values
# --------------------------------------------------
with chosen_backend(ncores):
    gui_dipoles_list = simulate_dipole(
        net=net_default_gui,
        tstop=tstop,
        n_trials=n_trials,
        dt=dt,
    )

# apply the same scaling/smoothing that we used above
# --------------------------------------------------
processed_dipole = gui_dipoles_list[0].copy()
processed_dipole.scale(3000).smooth(30);

# mod_shrink_output

Out:

Selected backend: <class 'hnn_core.parallel_backends.MPIBackend'> Number of cores: 1 -------------------------------------------------- MPIBackend is set to use 1 core: transferring the simulation to JoblibBackend.... Joblib will run 1 trial(s) in parallel by distributing trials over 1 jobs. Building the NEURON model [Done] Trial 1: 0.03 ms... Trial 1: 10.0 ms... Trial 1: 20.0 ms... Trial 1: 30.0 ms... Trial 1: 40.0 ms... Trial 1: 50.0 ms... Trial 1: 60.0 ms... Trial 1: 70.0 ms... Trial 1: 80.0 ms... Trial 1: 90.0 ms... Trial 1: 100.0 ms... Trial 1: 110.0 ms... Trial 1: 120.0 ms... Trial 1: 130.0 ms... Trial 1: 140.0 ms... Trial 1: 150.0 ms... Trial 1: 160.0 ms...

Next, we will create our new, combined figure that matches the initial GUI output. Since we will be re-generating this plot numerous times throughout the rest of the ERP walkthrough, we will create a plotting function called plot_initial_gui_figure that accepts three arguments:

The network object
The processed simulation dipole
The experimental dipole

Writing a function to generate this plot will allow us to re-use this same code later with different arguments, which will reduce the amount of code we need to repeat later.

The first subplot in our figure will show the histogram of spikes from the External Drives. Remember that we model the External Drives as multiple series of exogenous spikes arriving as inputs to either the proximal or distal locations in thenetwork, as shown in the diagrams below:

Figure 7.1.A: Template Network Model

Spikes for all cell types can be found in the net.cell_response.spike_times_by_type data dictionary, with the dictionary's keys corresponding to either the unique cell_types name or the unique external_drives name.

For example, in the code block below, we print the first and last spike from each drive


                        trial = 0

# we can get the drives programatically, but in an *unordered*
# list, with the line below
all_drives = list(net_default_gui.external_drives.keys())

# instead, I'll specify them manually by order of arrival time
all_drives = ["evprox1", "evdist1", "evprox2"]

# the object below includes *all* cell spikes, not just for drives
all_spike_types = net_default_gui.cell_response.spike_times_by_type

# print the first and last spike to arrive at the network for
# each external drive
for drive in all_drives:
    first_spike = round(min(all_spike_types[drive][trial]), 3)
    last_spike = round(max(all_spike_types[drive][trial]), 3)
    print(f'Drive = "{drive}":')
    print(
        f"    First spike arrival time: {first_spike} ms",
        f"     Last spike arrival time: {last_spike} ms",
        "",
        sep="\n",
    )

Out:

Drive = "evprox1": First spike arrival time: 19.214 ms Last spike arrival time: 34.407 ms Drive = "evdist1": First spike arrival time: 54.571 ms Last spike arrival time: 75.721 ms Drive = "evprox2": First spike arrival time: 110.021 ms Last spike arrival time: 158.814 ms

To visualize the spike arrival times for all of the External drives, we can use the built-in plot_spikes_hist() method in the network's CellResponse object. This method will generate a histogram of the arrival times of the spikes at the network, which we will use to examine the relationship between the driving inputs and the simulated response.

Note that, in the code below, we "wrap" plot_spikes_hist in a custom function called custom_drive_hist. The reason we do this is to create a version of the template plot_spikes_hist figure with pre-configured arguments, allowing us to easily generate a custom version of the plot later on without repeating the same code.


                        # initialize the figure
fig, ax = plt.subplots(figsize=(8, 4))


# define a function to customize the input histogram
def custom_drive_hist(
    ax,
    net,
):
    _ = net.cell_response.plot_spikes_hist(
        ax=ax,
        invert_spike_types=["evdist1"],  # "flip" the y axis
        color={
            "evprox1": "r",
            "evdist1": "g",
            "evprox2": "r",
        },
        show=False,
    )
    ax.set_title("External Drive Spike Arrival Times")

    return


# plot the histogram using our custom function

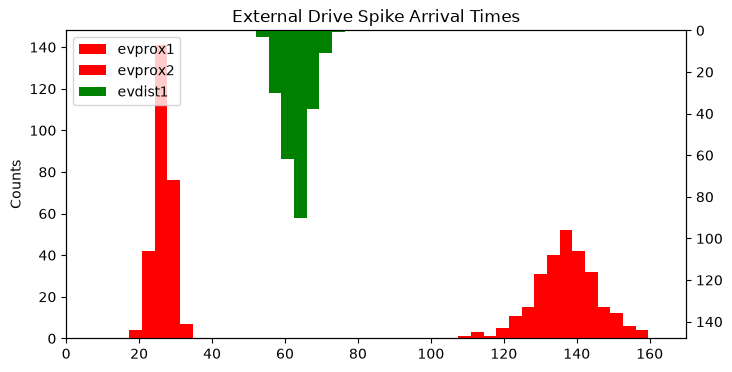

custom_drive_hist(
    ax=ax,
    net=net_default_gui,
)

Out:

Note that the distal drive ("evdist1") is plotted on the secondary (right-most) y axis, which is inverted. We do this to emphasize the scientific point that distal depolarization is one of the drivers of what we call Inward Currents (see the Figure B below), meaning current that flows "down" the long, apical dendrites of the pyramidal neurons (i.e., down towards theinfragranular layers of the cortex).

Figure 7.1.B: Inward and Outward Currents

To replicate the initial GUI figure, we will need to combine the histogram with a plot of the simulated and experimental dipoles. Let's create another "wrapper" function that generates a custom implementation of the template dipole plot.

The code within the function below largely overlaps with our previously-used plotting code. The only new addition is the inclusion of the Root Mean Squared Error ("RMSE") in the dipole plot, which relies on the _rmse helper function from hnn_core.dipole


                        def plot_sim_exp_dipoles(
    ax,
    processed_dipole,
    experimental_dpl,
    sim_name=None,
):
    from hnn_core.dipole import _rmse  # noqa

    # plot simulation and data in the bottom subplot
    # --------------------------------------------------
    _ = plot_dipole(
        processed_dipole,
        ax=ax,
        show=False,
    )
    ax.lines[-1].set_color(gui_colors["blue"])
    if sim_name is None:
        sim_name = "Simulation"
    ax.lines[-1].set_label(sim_name)

    # plot experimental data in the bottom subplot
    # --------------------------------------------------
    _ = experimental_dpl.plot(
        ax=ax,
        show=False,
    )
    ax.lines[-1].set_label("Experimental data")
    ax.lines[-1].set_color(gui_colors["orange"])

    # add RMSE to the figure
    # --------------------------------------------------
    t0 = 0.0
    tstop = processed_dipole.times[-1]
    rmse = _rmse(
        processed_dipole,
        experimental_dpl,
        t0,
        tstop,
    )

    ax.annotate(
        f"RMSE: {rmse:.4f}",
        xy=(0.95, 0.05),
        xycoords="axes fraction",
        ha="right",
        va="bottom",
        fontsize=12,
    )

    ax.legend()

    return

Lastly, we will create a function plot_initial_gui_figure, that combines our two plotting functions to generate our combined GUI figure.


                        def plot_initial_gui_figure(
    net,
    processed_dipole,
    experimental_dpl,
    sim_name=None,
):
    fig, axes = plt.subplots(
        nrows=2,
        figsize=(8, 8),
        gridspec_kw={"height_ratios": [1, 3]},  # sets subplot dimensions
        constrained_layout=True,
    )

    # plot the input histogram in the top subplot
    # --------------------------------------------------
    custom_drive_hist(
        ax=axes[0],
        net=net,
    )

    # plot the dipoles in the bottom subplot
    # --------------------------------------------------
    plot_sim_exp_dipoles(
        axes[1],
        processed_dipole,
        experimental_dpl,
        sim_name,
    )

    return fig

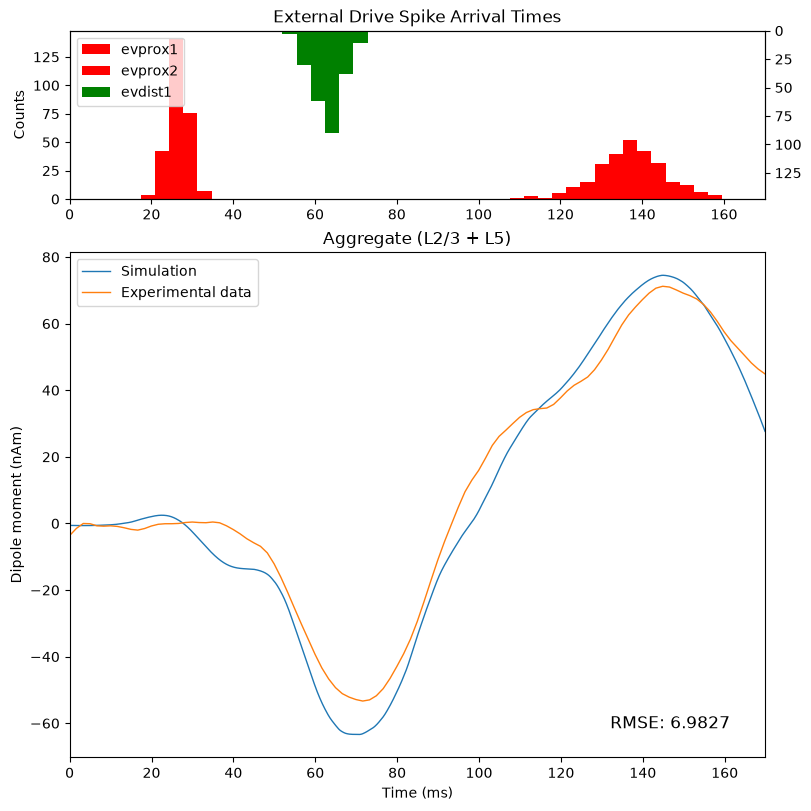

_ = plot_initial_gui_figure(
    net_default_gui,
    processed_dipole,
    threshold_experimental_dpl,
)

Out:

Now that we have replicated the initial GUI output, we can move on to interpretation. In this Python API tutorial, we will briefly highlight some key insights, but please watch the accompanying GUI video tutorial for a more detailed walkthrough.

As a reminder, here we will focus on unpacking the dynamics that are responsible for generating our aggregate, simulated signal around the time of the first proximal drive.

We know from our outputs above that the first spike from the first proximal drive ("evprox1") arrives at the network just after 19ms, and the first spike from the first distal drive ("evdist1) arrives just after 54ms.

Given that the network is initially at rest and no other inputs arrive during this time period, any changes in the simulation output between those two timepoints can be isolated to the impact of the first proximal drive on the network.

We've previously told you that proximal drives generally cause what we refer to as "Outward Currents" (see the Figure B), i.e. current that flows towards the supragranular layers of the cortex in the long, apical dendrites of our pyramidal neurons.

However, if we examine the time period of interest, we see that this assertion does not hold true for the default network. While there is an initial positive deflection in the simulation dipole (blue line), the signal actually reverses direction and drops below zero, indicating net current flow towards the infragranular layers.

To highlight this observation, the code below adds an outline to the time window of interest and also a dashed line at y = 0. We will once again implement this feature as a function so that we can re-use it later on. (It is not important to understand how this function works.)


                        # create a function to add an outline around a time window
# --------------------------------------------------
def add_outline_to_subplot(
    ax,
    x_bounds=[19, 54],
    show_origin_line=True,
):
    from matplotlib.patches import Rectangle  # noqa

    # set x and y boundaries for the outline/rectangle
    xmin, xmax = x_bounds[0], x_bounds[1]
    ymin, ymax = ax.get_ylim()

    # add a rectangle to each subplot
    ax.add_patch(
        Rectangle(
            xy=(xmin, ymin),  # start position
            width=xmax - xmin,
            height=ymax - ymin,
            fill=False,
        )
    )

    # optionally add dashed horizontal line at the origin
    if show_origin_line:
        ax.axhline(
            linestyle="--",
            color="black",
        )
    return


# re-generate and update figure with the outlines
# --------------------------------------------------

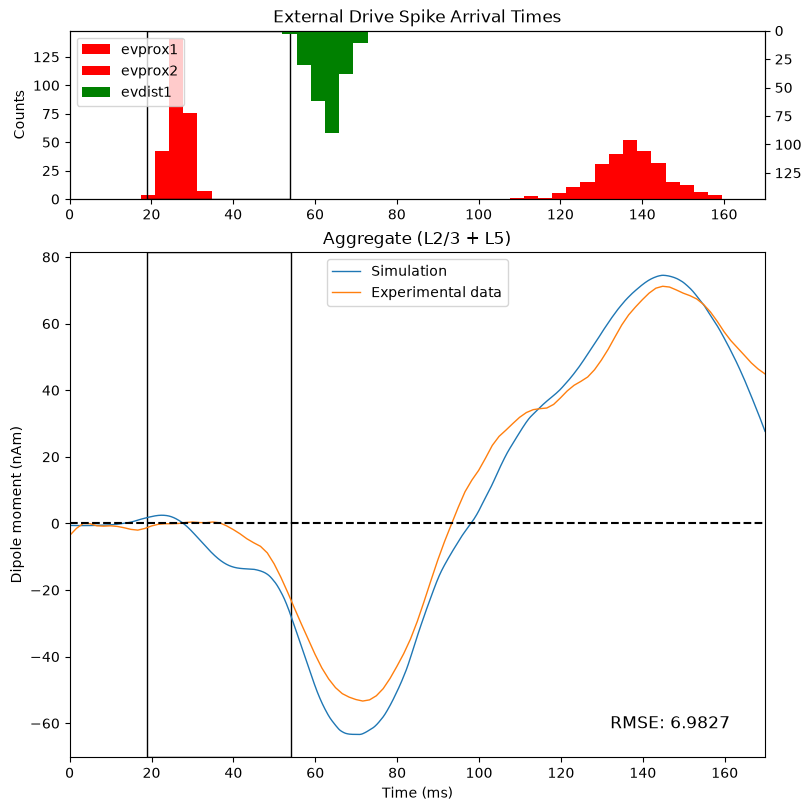

fig = plot_initial_gui_figure(
    net_default_gui,
    processed_dipole,
    threshold_experimental_dpl,
)
add_outline_to_subplot(
    fig.axes[0],
    show_origin_line=False,
)
add_outline_to_subplot(fig.axes[1])

Out:

So, why might it be the case that the net current flow during this time window is inward? To begin to unpack this, we need to look at what's happening in the underlying circuits.

We can start by looking at the layer-specific dipoles, as done in the code below.

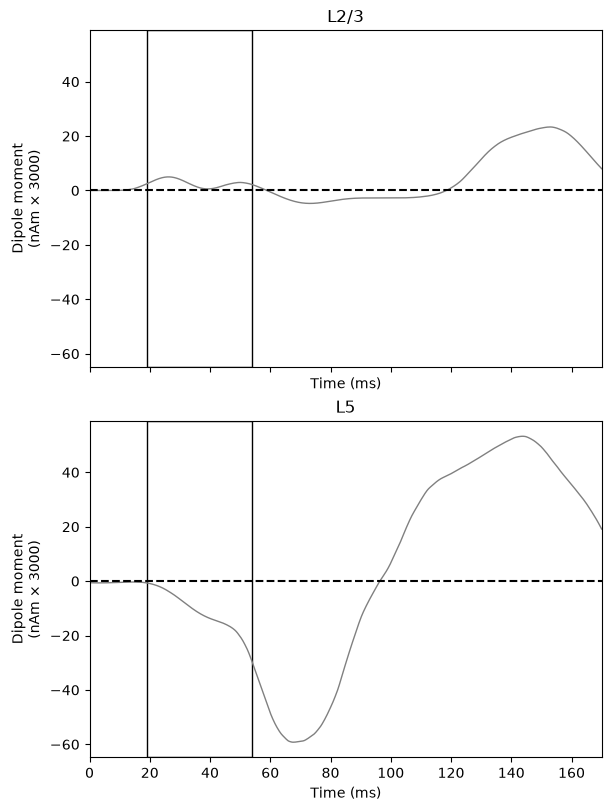

                        # initialize figure and plot layer-specific dipoles
# --------------------------------------------------
fig, axes = plt.subplots(
    nrows=2,
    ncols=1,
    sharex=True,
    figsize=(6, 8),
    constrained_layout=True,
    sharey=True,
)

for idx, layer in enumerate(["L2", "L5"]):
    plot_dipole(
        processed_dipole,
        ax=axes[idx],
        layer=layer,
        show=False,
    )

# add outline around first proximal drive
# --------------------------------------------------
for ax in fig.axes:
    add_outline_to_subplot(ax)

Out:

These figures clearly indicate that the net inward current in the aggregate dipole (which is simply the sum of the Layer 2/3 and Layer 5 dipoles) in this time window is being driven by Layer 5.

Next, let's examine the spiking in the local network, paying particular attention to what is happening in Layer 5 that may explain the effect.

We can use the plot_spikes_raster() method of the CellResponse object to generate a raster plot that shows not only the cell-type-specific spiking, but also overlays the layer-specific dipoles over the corresponding pyramidal neurons that contribute to those signals. (Note that the layer-specific dipoles are shifted along the y-axis to overlay the appropriate spiking cells, but their scaling remains unchanged from the figure above.)


                        # initialize the figure and generate the raster plot
# --------------------------------------------------
fig, axes = plt.subplots(figsize=(8, 6))


def custom_spikes_raster(
    ax,
    net,
    processed_dipole,
):
    _ = net.cell_response.plot_spikes_raster(
        ax=ax,
        dpl=processed_dipole,
        overlay_dipoles=True,
        show=False,
    )
    ax.set_title("Spike Raster With Layer-Specific Dipoles")

    # move legend outside figure to not overlap plot
    # --------------------------------------------------
    legend = ax.get_legend()
    ax.artists[-1].remove()
    legend.set_bbox_to_anchor((1.01, 0.85))
    legend.set_loc("center left")

    return

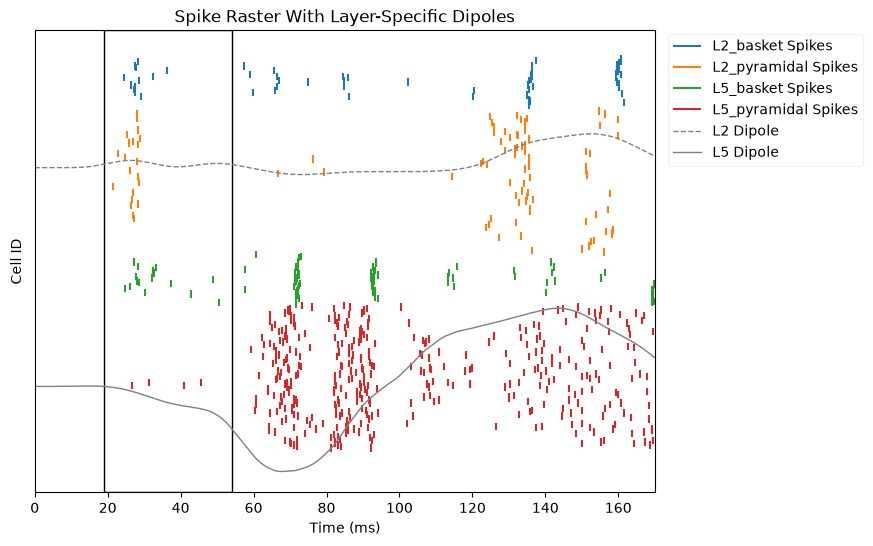

custom_spikes_raster(
    ax=axes,
    net=net_default_gui,
    processed_dipole=processed_dipole,
)

# add outline around first proximal drive
# --------------------------------------------------
add_outline_to_subplot(
    axes,
    show_origin_line=False,
)

Out:

With this figure, we could begin to relate the cell-specific spiking to the layer-specific dipoles.

However, the smoothed dipole we plot in the figure above obscures the dynamic relationship between the cell spiking and the dipole. Typically, when doing this type of multi-scale interpretation, we want to look at the unsmoothed dipole in relation to the spiking

Below, we will re-copy the raw dipole, and apply only the scaling factor. We will then re-plot the spike raster with the unsmoothed dipole.

We can also add the drives histogram as an additional subplot, so we can view several of the key data we need for interpretation in one single figure.


                        unsmoothed_dipole = gui_dipoles_list[0].copy()
unsmoothed_dipole.scale(3000)


def plot_combined_raster_hist(
    net,
    dipole,
):
    fig, axes = plt.subplots(
        nrows=2,
        figsize=(10, 8),
        gridspec_kw={"height_ratios": [1, 3]},  # sets subplot dimensions
        constrained_layout=True,
    )

    # plot the input histogram in the top subplot
    # --------------------------------------------------
    custom_drive_hist(
        ax=axes[0],
        net=net,
    )

    # plot the spike raster in the bottom subplot
    # --------------------------------------------------
    custom_spikes_raster(
        ax=axes[1],
        net=net,
        processed_dipole=dipole,
    )

    return fig

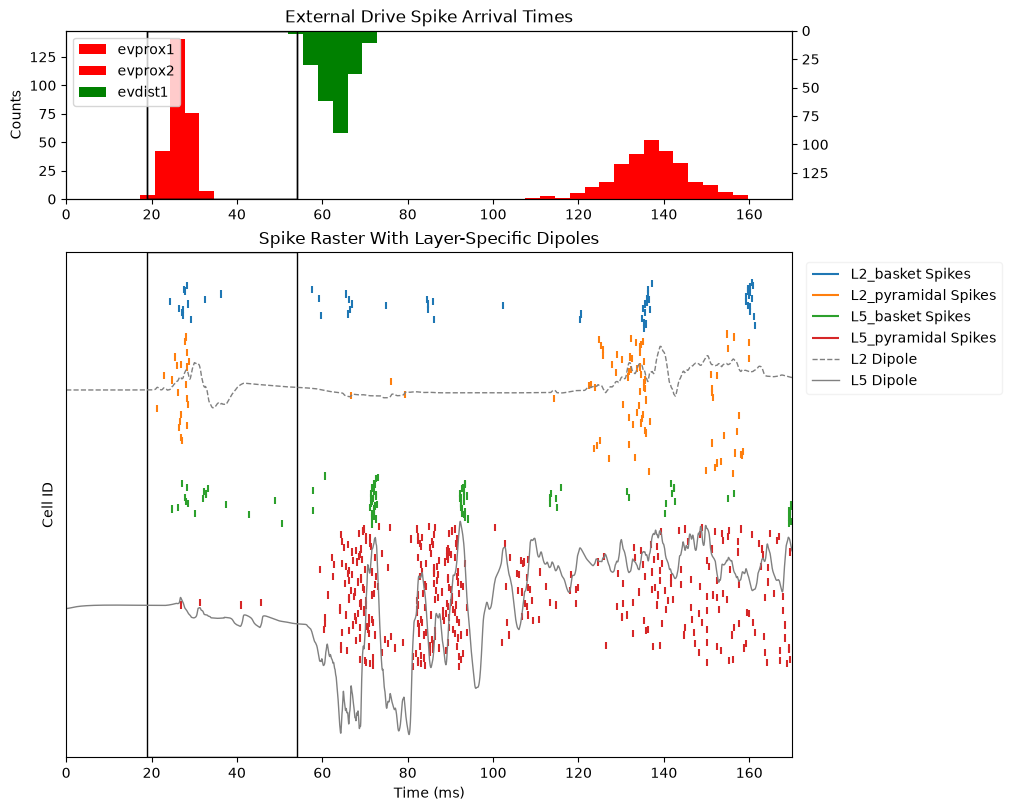

fig = plot_combined_raster_hist(
    dipole=unsmoothed_dipole,
    net=net_default_gui,
)

for ax in fig.axes:
    add_outline_to_subplot(
        ax,
        show_origin_line=False,
    )

Out:

Now we have all of the information we need to relate the cell-specific spiking to the layer-specific dipoles in a single plot.

We will pick up from this point in the subsequent page, Part 2.
