Initializing the Network

First, we instantiate the standard Jones 2009 model. This model serves as the baseline for our exploration.


                        net = jones_2009_model()
print(f"Network created with {len(net.cell_types)} cell types")
print(f"Cell types: {list(net.cell_types.keys())}")

Out:

Network created with 4 cell types Cell types: ['L2_basket', 'L2_pyramidal', 'L5_basket', 'L5_pyramidal']


        type(net.cell_types) # cell types are returned as a dictionary now for us to see

Out:

dict


        net.cell_types  # each cell type is a dictionary containing the cell object and cell metadata

Out:

{'L2_basket': {'cell_object': <Cell | gid=None>, 'cell_metadata': {'morpho_type': 'basket', 'electro_type': 'inhibitory', 'layer': '2', 'measure_dipole': False, 'reference': 'https://doi.org/10.7554/eLife.51214'}}, 'L2_pyramidal': {'cell_object': <Cell | gid=None>, 'cell_metadata': {'morpho_type': 'pyramidal', 'electro_type': 'excitatory', 'layer': '2', 'measure_dipole': True, 'reference': 'https://doi.org/10.7554/eLife.51214'}}, 'L5_basket': {'cell_object': <Cell | gid=None>, 'cell_metadata': {'morpho_type': 'basket', 'electro_type': 'inhibitory', 'layer': '5', 'measure_dipole': False, 'reference': 'https://doi.org/10.7554/eLife.51214'}}, 'L5_pyramidal': {'cell_object': <Cell | gid=None>, 'cell_metadata': {'morpho_type': 'pyramidal', 'electro_type': 'excitatory', 'layer': '5', 'measure_dipole': True, 'reference': 'https://doi.org/10.7554/eLife.51214'}}}


                        # The cell metadata contains information on morphology, cell type (inhibitory/excitatory), layer, and whether the cell contributes to the dipole
for cell_type_name, cell_type_data in net.cell_types.items():
    print(f"\n{cell_type_name}:")
    metadata = cell_type_data["cell_metadata"]
    for key, value in metadata.items():
        print(f"  {key}: {value}")

Out:

L2_basket: morpho_type: basket electro_type: inhibitory layer: 2 measure_dipole: False reference: https://doi.org/10.7554/eLife.51214 L2_pyramidal: morpho_type: pyramidal electro_type: excitatory layer: 2 measure_dipole: True reference: https://doi.org/10.7554/eLife.51214 L5_basket: morpho_type: basket electro_type: inhibitory layer: 5 measure_dipole: False reference: https://doi.org/10.7554/eLife.51214 L5_pyramidal: morpho_type: pyramidal electro_type: excitatory layer: 5 measure_dipole: True reference: https://doi.org/10.7554/eLife.51214


                        # The cell object contains the properties of the cell, such as its sections, synapses, and ion channels (see below for an example)
# the properties of each section can be accessed as follows:

cell_type = "L2_pyramidal"
for key, value in net.cell_types[cell_type]["cell_object"].sections.items():
    print(f"\nSection: {key}")
    print(f"  Properties: {value}")

Out:

Section: apical_trunk Properties: L=59.5, diam=4.25, cm=0.6195, Ra=200.0 Section: apical_1 Properties: L=306.0, diam=4.08, cm=0.6195, Ra=200.0 Section: apical_tuft Properties: L=238.0, diam=3.4, cm=0.6195, Ra=200.0 Section: apical_oblique Properties: L=340.0, diam=3.91, cm=0.6195, Ra=200.0 Section: basal_1 Properties: L=85.0, diam=4.25, cm=0.6195, Ra=200.0 Section: basal_2 Properties: L=255.0, diam=2.72, cm=0.6195, Ra=200.0 Section: basal_3 Properties: L=255.0, diam=2.72, cm=0.6195, Ra=200.0 Section: soma Properties: L=22.1, diam=23.4, cm=0.6195, Ra=200.0

Querying Cell Types

The net.cell_types dictionary contains the metadata for each cell type. We can filter and query this information to find specific groups of cells based on their properties, such as layer, ephys, or morphology.


                        excitatory = net.filter_cell_types(electro_type='excitatory')
print(f"Excitatory cells: {excitatory}")

layer2_cells = net.filter_cell_types(layer='2')
print(f"Layer 2 cells: {layer2_cells}")

dipole_contributors = net.filter_cell_types(measure_dipole=True)
print(f"Dipole contributors: {dipole_contributors}")

Out:

Excitatory cells: ['L2_pyramidal', 'L5_pyramidal'] Layer 2 cells: ['L2_basket', 'L2_pyramidal'] Dipole contributors: ['L2_pyramidal', 'L5_pyramidal']

Inspecting Connection Weights

We can also use metadata to investigate the connectivity of the network. The existing net.connectivity list stores information about all connections, which we can inspect to understand the default weights and delays.


                        src_example = 'L2_pyramidal'
target_example = 'L2_pyramidal'

print(f"Example: {src_example} \u2192 {target_example} proximal connections")

for conn in net.connectivity:
    if (conn['src_type'] == src_example and
        conn['target_type'] == target_example and
        conn['loc'] == 'proximal'):

        weight = conn['nc_dict']['A_weight']
        gain = conn['nc_dict'].get('gain', 1.0)

        print(f"Receptor: {conn['receptor']}")
        print(f"  Base weight: {weight:.6f} \u03bcS")
        print(f"  Gain factor: {gain}")
        print(f"  Effective weight: {weight * gain:.6f} \u03bcS")
        print(f"  Delay: {conn['nc_dict']['A_delay']} ms")
        print(f"  Space constant: {conn['nc_dict']['lamtha']}")

Out:

Example: L2_pyramidal → L2_pyramidal proximal connections Receptor: nmda Base weight: 0.000500 μS Gain factor: 1.0 Effective weight: 0.000500 μS Delay: 1.0 ms Space constant: 3.0 Receptor: ampa Base weight: 0.000500 μS Gain factor: 1.0 Effective weight: 0.000500 μS Delay: 1.0 ms Space constant: 3.0

Identifying Dipole Contributors

The measure_dipole metadata field indicates whether a cell type's activity is included in the dipole calculation. This is something that would not be used in your Day to Day activity, but is relevant if you want to know more about the model you are working with!


                        #cells that contribute to the dipole
dipole_cells = net.filter_cell_types(measure_dipole=True)
non_dipole_cells = net.filter_cell_types(measure_dipole=False)

print("Cells contributing to dipole signal:")
for cell_type in dipole_cells:
    print(f"{cell_type}")

print("\nCells NOT contributing to dipole signal:")
for cell_type in non_dipole_cells:
    print(f"{cell_type}")

Out:

Cells contributing to dipole signal: L2_pyramidal L5_pyramidal Cells NOT contributing to dipole signal: L2_basket L5_basket

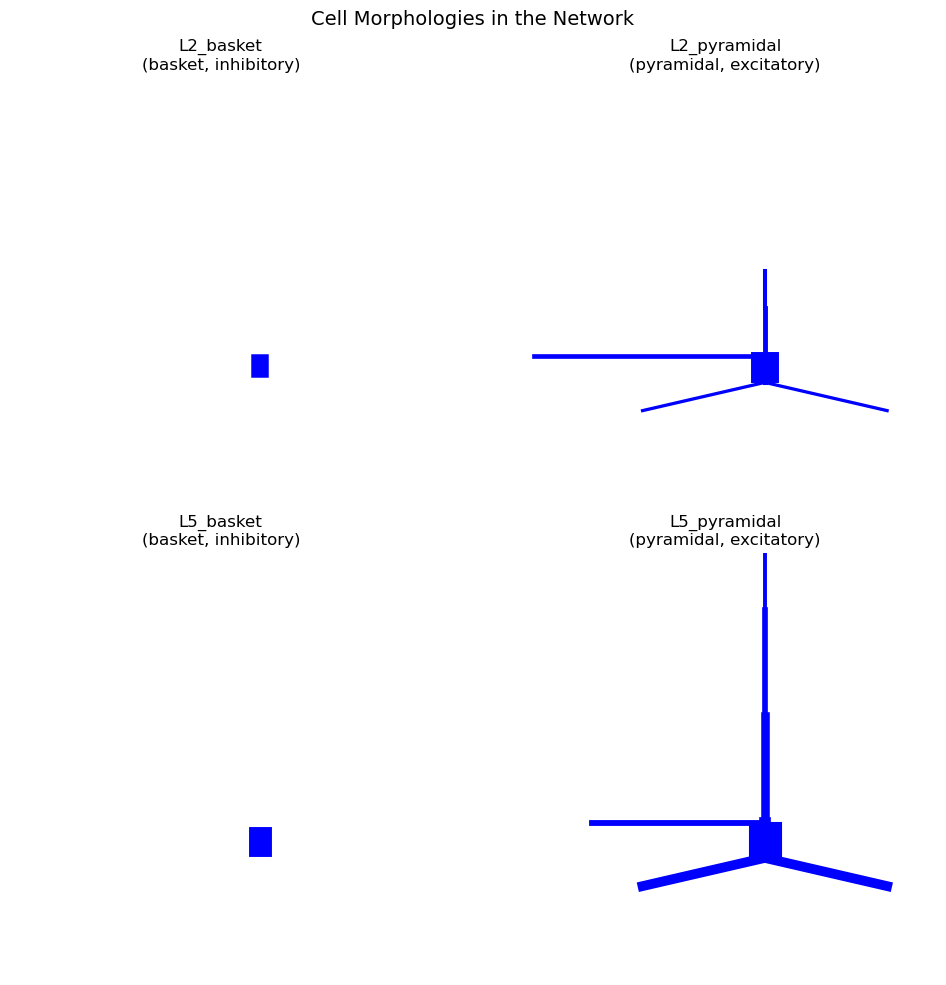

Visualizing Cell Morphologies

another usecase is that metadata can be used to organize and annotate visualizations


                        fig = plt.figure(figsize=(14, 10))

for idx, (cell_name, cell_data) in enumerate(net.cell_types.items()):
    ax = fig.add_subplot(2, 2, idx + 1, projection='3d')  # Create 3D subplot
    cell_obj = cell_data["cell_object"]
    cell_obj.plot_morphology(ax=ax, show=False)
    #below we use annotations based on the metaData
    ax.set_title(f'{cell_name}\n({cell_data["cell_metadata"]["morpho_type"]}, '
                 f'{cell_data["cell_metadata"]["electro_type"]})')

plt.suptitle('Cell Morphologies in the Network', fontsize=14, y=0.98)
plt.tight_layout()
plt.show()

Out:

Combining queries

combine multiple criteria to filter cell types. For example, we might want to find all excitatory cells in a specific layer.


                        # excitatory cells in layer 2
l2_excitatory = net.filter_cell_types(layer='2', electro_type='excitatory')
print(f"Layer 2 excitatory cells: {l2_excitatory}")

# properties of this filtered population
if l2_excitatory:
    cell_type = l2_excitatory[0]
    metadata = net.cell_types[cell_type]['cell_metadata']
    cell_count = len(net.pos_dict[cell_type])

    print(f"\nProperties of {cell_type}:")
    print(f"  Cell count: {cell_count}")
    print(f"  Morphology: {metadata['morpho_type']}")
    print(f"  Contributes to dipole: {metadata['measure_dipole']}")

Out:

Layer 2 excitatory cells: ['L2_pyramidal'] Properties of L2_pyramidal: Cell count: 100 Morphology: pyramidal Contributes to dipole: True

Inspecting Ion Channel Conductances

Another usecase allowing you to access the conductance parameters of ion channels across different cell types


                        # metadata to find a pyramidal cell, then examine its conductances
pyramidal_cells = net.filter_cell_types(morpho_type='pyramidal')
example_pyramidal = pyramidal_cells[0]

print(f"Conductances in {example_pyramidal}:")

cell_obj = net.cell_types[example_pyramidal]['cell_object']

# soma conductances as an example
if 'soma' in cell_obj.sections:
    soma_mechs = cell_obj.sections['soma'].mechs
    print("\nSoma ion channels:")
    for mech_name, mech_params in soma_mechs.items():
        conductances = {k: v for k, v in mech_params.items()
                       if 'gbar' in k or 'gkbar' in k or 'gnabar' in k}
        if conductances:
            print(f"  {mech_name}: {conductances}")

# same for the dendritic section
if 'apical_tuft' in cell_obj.sections:
    tuft_mechs = cell_obj.sections['apical_tuft'].mechs
    if tuft_mechs:
        print("\nApical tuft ion channels:")
        for mech_name, mech_params in tuft_mechs.items():
            conductances = {k: v for k, v in mech_params.items() if 'gbar' in k}
            if conductances:
                print(f"  {mech_name}: {conductances}")

Out:

Conductances in L2_pyramidal: Soma ion channels: km: {'gbar_km': 250.0} hh2: {'gkbar_hh2': 0.01, 'gnabar_hh2': 0.18} Apical tuft ion channels: km: {'gbar_km': 250.0}
