4.5 Simulate the Default Network

Simulate the Default Network

Let's begin by importing all of the dependencies we will need for this section of the tutorial

from urllib.request import urlretrieve import matplotlib.pyplot as plt from hnn_core import ( JoblibBackend, MPIBackend, read_dipole, simulate_dipole, ) from hnn_core.network_models import add_erp_drives_to_jones_model from hnn_core.viz import plot_dipole

Load Experimental Data

Following the typical experimental workflow outlined in the Simulation Workflow page, we will begin by importing some real experimental MEG data.

As a reminder, the data we use in these tutorials are from the Jones et al. 2007 study, as detailed in the Introduction and ERP Overview page.

Using the code below, we can fetch the data for the treshold-level tacile evoked response directly from our lab's hnn-data GitHub repository. (If you prefer, you can also clone the hnn-data repository to your local machine and import the data from there)

# link to the data in the `hnn-data` GitHub repository data_url = "https://raw.githubusercontent.com/jonescompneurolab/hnn-data/main/MEG_detection_data/yes_trial_S1_ERP_all_avg.txt" urlretrieve( data_url, "yes_trial_S1_ERP_all_avg.txt", );

Once we've fetched the data, we can load it with the read_dipole() function and assign it to a variable; in this case, we assign it to the variable named threshold_experimental_dpl. This process will load the experimental data as a Dipole object that can be used with hnn-core.

The Dipole object has various attributes that we will not explore in detail at this time. For now, we will focus on two specific data attributes: times and data.

Let's examine these attributes in more detail.

# load the experimental data as a `Dipole` object and # assign it to a variable threshold_experimental_dpl = read_dipole( "yes_trial_S1_ERP_all_avg.txt", ) # assign the `times` data attribute to a variable threshold_times = threshold_experimental_dpl.times # assign the `data` data attribute to a variable threshold_data = threshold_experimental_dpl.data print( f"Object type: {type(threshold_experimental_dpl)}", f" Data type: {type(threshold_data)}", f" Times type: {type(threshold_times)}", sep="\n", )
Out:
Object type: <class 'hnn_core.dipole.Dipole'> Data type: <class 'dict'> Times type: <class 'numpy.ndarray'>

We can see that the data attribute is a dictionary, while the times attribute is an array. As the names imply, the current dipole data are stored in the data dictionary, while the timesteps are stored directly in the times attribute.

Let's examine the data dictionary in more detail, printing its keys and value types.

print( "# Examining the `data` dictionary:", "# " + "-" * 40, sep="\n", ) for key, value in threshold_data.items(): print( f'Key: "{key}"', f" Value type: {type(value)}", sep="\n", )
Out:
# Examining the `data` dictionary: # ---------------------------------------- Key: "agg" Value type: <class 'numpy.ndarray'>

We can see that the data dictionary has a single key named agg that points to an array.

Since the source data yes_trial_S1_ERP_all_avg.txt has two columns (you can verify this by pasting the URL above in your browser and examining the data), the read_dipole() function assumes that one column represents the times (in miliseconds), and the other represents the aggregate current dipole (in nano-ampere meters, nAm).

Therefore, the agg key in our data dictionary refers to the aggregate current dipole.

If our source data had four columns, read_dipole() would assume that the columns correspond to: 1) times (ms) 2) aggregate current dipole (nAm) 3) L2/3 current dipole (nAm) 4) L5 current dipole (nAm)

In the above case, the data dictionary would contain additional keys for the L2/3 and L5 current dipoles.

Now that we've explored the loaded data objects, let's go ahead and use the built-in Dipole.plot() method to view the data

_ = threshold_experimental_dpl.plot()
Out:
<Figure size 640x480 with 1 Axes>

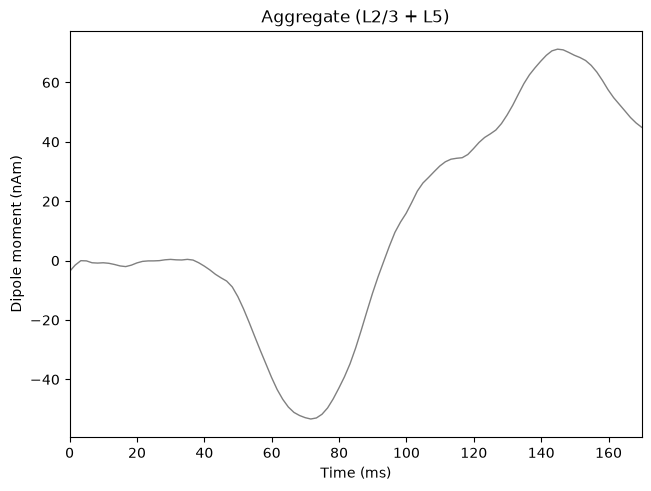

You can see that the built-in plot method is assuming that the units of time are in miliseconds, and that the units of the current dipole are in nAm. The data plotted are for the Aggregate dipole, which is the sum of the Layer 2/3 and Layer 5 dipoles.

Prepare the Default Network for Simulation

Remember that exogenous inputs (modelled as spike trains arriving at the proximal or distal locations in the network) are necessary to drive network activity.

However, the jones_2009_model() does not have external driving inputs by default. We can verify this by confirming the external drives data attribute is empty

print("Check if the `jones_2009_model` includes external drives ...") if jones_2009_model().external_drives: print(" Existing drives found!") else: print(" No drives found; `jones_2009_model().external_drives` is empty")
Out:
Check if the `jones_2009_model` includes external drives ... No drives found; `jones_2009_model().external_drives` is empty

We can add the default drives for simulating ERPs automatically using the add_erp_drives_to_jones_model() function we imported from hnn_core.network_models. (You can also manually add individual drives, and we will cover how to do so in a future section.)

Let's first check if there are an external drives already attached to our network object net default; if not, we'll add the drives using the aforementioned function.

Lastly, we will inspect the drives attached to net_default. For simulating ERPs, we expect to see two proximal drives and one distal drive.

# if there are no drives attached to the Network, then add them if not net_default.external_drives: print("No existing drives found. Adding default external drives ... ") # add the default external drives for ERP simulation # note: # the drives are added to the object **in place**, meaning we don't # need to assign the output back to the `net_default` variable add_erp_drives_to_jones_model(net_default) print("The following drives were added:") else: print("Existing drives found on the network object.") print("Printing existing drive names:") for key in net_default.external_drives.keys(): print(f" {key}")
Out:
No existing drives found. Adding default external drives ... The following drives were added: evdist1 evprox1 evprox2

Next, let's check the arrival time of each drive. Remember that for ERPs, we expect an initial feedforward (proximal) input, followed by a feedback (distal) input, followed by a second feedforward (proximal) input.

As discussed in the Introduction and ERP Overview page, this sequence of driving inputs was based on studying evoked potentials in animals using invasive recordings, and served as our starting point simulating human ERPs with HNN.

Note that the _NetworkDrive object behaves like a dictionary, meaning we can access its contents using keys with the same syntax used for dictionaries.

To get the mean arrival times, we need to access a value stored within the dynamics data attribute of each _NetworkDrive object. The dynamics attribute contains a dictionary of parameters, including the mu key, which stores the mean arrival time. Because _NetworkDrive objects behave like dictionaries, we can access this value using the nested key structure drive["dynamics"]["mu"].

# ---------------------------------------- # inspecting a single drive object # ---------------------------------------- # let's first inspect a single external drive object to understand # its structure # we can create a pointer to the "evdist1" object like so drive_key = "evdist1" drive_object = net_default.external_drives[drive_key] # as mentioned above, we'll be accessing the value of the "mu" # parameter in the "dynamics" data dictionary. # we can create pointers to these objects to make the printouts # below more readable drive_dynamics = drive_object["dynamics"] mean_arrival = drive_dynamics["mu"] # cleanly print out properties of the drive object # ---------------------------------------- print( "# " + "=" * 40 + "\n", "# Examining one drive object in detail", "\n# " + "=" * 40 + "\n", sep="", ) print( "# Investigate the `_NetworkDrive` object", "# " + "-" * 40, f"Drive type: {type(drive_object)}", f'Drive name: "{drive_object["name"]}"', f"Drive keys:\n\t{str(list(drive_object.keys()))}", "", f'# Examining the "dynamics" data attribute of the "{drive_key}" drive', "# " + "-" * 40, f"Attribute type: {type(drive_dynamics)}", f"Attrubute keys: {list(drive_dynamics.keys())}", "", sep="\n", ) # ---------------------------------------- # inspect the value of "mu" for each drive # ---------------------------------------- # now let's loop through each drive and print the # value of "mu" (i.e., the mean arrival time) print( "# " + "=" * 40 + "\n", '# Print each drive\'s "mu" parameter', "\n# " + "=" * 40 + "\n", sep="", ) for key, drive_object in net_default.external_drives.items(): mean_arrival = drive_object["dynamics"]["mu"] print( f'Mean arrival time for "{key}": {mean_arrival} ms', sep="\n", )
Out:
# ======================================== # Examining one drive object in detail # ======================================== # Investigate the `_NetworkDrive` object # ---------------------------------------- Drive type: <class 'hnn_core.network._NetworkDrive'> Drive name: "evdist1" Drive keys: ['type', 'location', 'n_drive_cells', 'event_seed', 'conn_seed', 'dynamics', 'events', 'weights_ampa', 'weights_nmda', 'synaptic_delays', 'probability', 'name', 'target_types', 'cell_specific'] # Examining the "dynamics" data attribute of the "evdist1" drive # ---------------------------------------- Attribute type: <class 'dict'> Attrubute keys: ['mu', 'sigma', 'numspikes'] # ======================================== # Print each drive's "mu" parameter # ======================================== Mean arrival time for "evdist1": 63.53 ms Mean arrival time for "evprox1": 26.61 ms Mean arrival time for "evprox2": 137.12 ms

We can see that the drives we added do follow the expected sequence: a proximal drive arriving first at ~27 ms, a distal drive arriving second at ~64 ms, and a second proximal drive arriving last at ~ 137 ms.

Now that we've added the external drives to the Network, we are nearly ready to run our simulation of the threshold-level ERP.

Run the Default Simulation

Before running the simulation, we need to choose a backend. HNN-core supports both the Joblib backend (which can run independent simulation trials in parallel), and the MPI backend (which can distribute the computation of a single simulation trial across multiple processes)

You can try running the simulation with both Joblib and MPI and compare the simulation speeds by changing the use_MPI flag below from False to True, or vice versa

Additionally, you should set the number of cores to use based on your machine's resources. There are instructions on how to check the number of available cores on the Installation page.

# choose a backend, and select the number of cores # -------------------------------------------------- # try changing the use_MPI flag and comparing # the simulation speeds use_MPI = True if use_MPI is False: chosen_backend = JoblibBackend else: chosen_backend = MPIBackend # when calling our `chosen_backend` below, we can # explicitly set the number of cores to use # # in general, more cores = faster simulations ncores = 4

The simulate_dipole() function below is the main function for generating simulated dipole signals from a Network object. It has two required arguments:

  1. the Network object

  2. the simulation duration (specified in ms)

The function accepts additional simulation parameters, including the integration timestep, the number of trials, and more

Once we've selected a backend, set the number of cores, and specified our required (and optional) simulation parameters, we're finally ready to run the default simulation for the threshold-level ERP

Note the syntax used to simulate the Network below. We use a with statement to run the simulation using the selected parallel backend (stored in chosen_backend in this case). The simulate_dipole() function is called inside this block, and the resulting output is assigned to the variable dipoles_list.

When we run the simulation below, hnn-core computes the cell and circuit activity, calculates the current dipoles, and returns a list of Dipole objects (one per each trial).

# set additional simulation parameters tstop = 170.0 # length of the simulation dt = 0.025 # integration timestep n_trials = 1 # number of trials # run the simulation with chosen_backend(ncores): dipoles_list = simulate_dipole( net=net_default, tstop=tstop, n_trials=n_trials, dt=dt, ) # mod_shrink_output
Out:
MPI will run 1 trial(s) sequentially by distributing network neurons over 4 processes. numprocs=4 Loading custom mechanism files from /usr/share/miniconda/envs/textbook-stable-env/lib/python3.12/site-packages/hnn_core/mod/x86_64/libnrnmech.so Building the NEURON model Loading custom mechanism files from /usr/share/miniconda/envs/textbook-stable-env/lib/python3.12/site-packages/hnn_core/mod/x86_64/libnrnmech.so Loading custom mechanism files from /usr/share/miniconda/envs/textbook-stable-env/lib/python3.12/site-packages/hnn_core/mod/x86_64/libnrnmech.so Loading custom mechanism files from /usr/share/miniconda/envs/textbook-stable-env/lib/python3.12/site-packages/hnn_core/mod/x86_64/libnrnmech.so [Done] Trial 1: 0.03 ms... Trial 1: 10.0 ms... Trial 1: 20.0 ms... Trial 1: 30.0 ms... Trial 1: 40.0 ms... Trial 1: 50.0 ms... Trial 1: 60.0 ms... Trial 1: 70.0 ms... Trial 1: 80.0 ms... Trial 1: 90.0 ms... Trial 1: 100.0 ms... Trial 1: 110.0 ms... Trial 1: 120.0 ms... Trial 1: 130.0 ms... Trial 1: 140.0 ms... Trial 1: 150.0 ms... Trial 1: 160.0 ms...

Plot Default Simulation with Data

The simulation we just ran yields a dipole signal in units of nanoampere-meters (nAm). Remember that source-localize MEG and EEG data yield dipole signals in these same units of nAm. By representing the simulation and the experimental data in the same units, HNN enables a one-to-one comparison between the two signals.

Next, let's plot the experimental data alongside the simulated dipole output and compare the two signals directly.

fig, axes = plt.subplots( nrows=2, ncols=1, sharex=True, figsize=(6, 6), constrained_layout=True, ) _ = plot_dipole( dipoles_list, ax=axes[0], layer="agg", color="#1f77b4", show=False, ) _ = threshold_experimental_dpl.plot( ax=axes[1], show=False, ) # style figure # -------------------------------------------------- # set line colors to match the accompanying GUI video for subplot in axes: subplot.lines[0].set_color("#1f77b4") # add subplot titles axes[0].set_title("Simulated Dipole") axes[1].set_title("Experimental Dipole");
Out:
<Figure size 600x600 with 2 Axes>

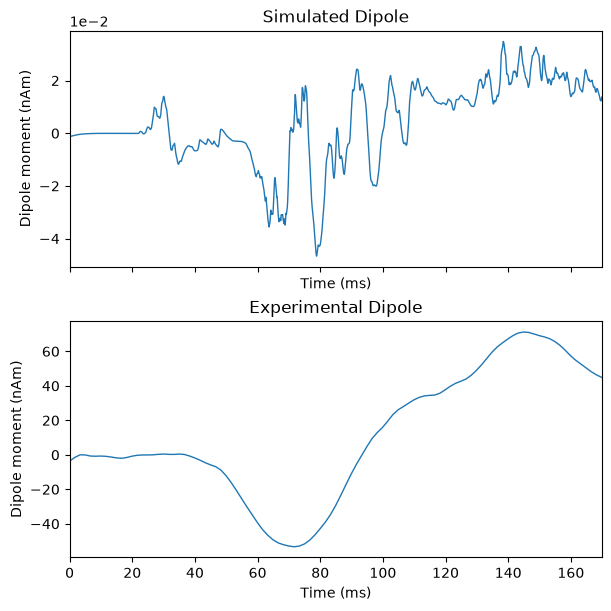

You should note that the simulated dipole signal and the loaded data look quite different in both their shapes and their magnitudes.

These discrepancies are due to the fact that simulate_dipole() returns a list of raw dipole signals. There are some post-processing steps we need to follow before we can truly compare our simulated and experimental dipoles, and we will discuss these steps in the next section.
