4.9: Optimize simulated evoked response parameters

This example demonstrates how to optimize the parameters of the model simulation to match an experimental dipole waveform.


        # Authors: Carolina Fernandez
#          Nick Tolley
#          Ryan Thorpe
#          Mainak Jas

import os.path as op

import matplotlib.pyplot as plt

Let us import hnn_core


        import hnn_core
from hnn_core import (MPIBackend, jones_2009_model, simulate_dipole,
                      read_dipole)

hnn_core_root = op.join(op.dirname(hnn_core.__file__))

# The number of cores may need modifying depending on your current machine.
n_procs = 10

First, we will load experimental data into a Dipole object using read_dipole. This is a different experiment than the one to which the base parameters were tuned. So, the initial RMSE will be large, giving the optimization procedure a lot to work with.


        from urllib.request import urlretrieve

data_url = ('https://raw.githubusercontent.com/jonescompneurolab/hnn/master/'
            'data/MEG_detection_data/S1_SupraT.txt')
urlretrieve(data_url, 'S1_SupraT.txt')
exp_dpl = read_dipole('S1_SupraT.txt')

Let’s then simulate the dipole with some initial parameters.


        tstop = exp_dpl.times[-1]
scale_factor = 3000
smooth_window_len = 30

net_init = jones_2009_model()

# Proximal 1
weights_ampa_p1 = {'L2_basket': 0.2913, 'L2_pyramidal': 0.9337,
                   'L5_basket': 0.1951, 'L5_pyramidal': 0.3602}
weights_nmda_p1 = {'L2_basket': 0.9240, 'L2_pyramidal': 0.0845,
                   'L5_basket': 0.5849, 'L5_pyramidal': 0.65105}
synaptic_delays_p = {'L2_basket': 0.1, 'L2_pyramidal': 0.1,
                     'L5_basket': 1., 'L5_pyramidal': 1.}
net_init.add_evoked_drive('evprox1',
                          mu=5.6813,
                          sigma=20.3969,
                          numspikes=1,
                          location='proximal',
                          weights_ampa=weights_ampa_p1,
                          weights_nmda=weights_nmda_p1,
                          synaptic_delays=synaptic_delays_p)

# Distal
weights_ampa_d1 = {'L2_basket': 0.8037, 'L2_pyramidal': 0.5738,
                   'L5_pyramidal': 0.3626}
weights_nmda_d1 = {'L2_basket': 0.2492, 'L2_pyramidal': 0.6183,
                   'L5_pyramidal': 0.1121}
synaptic_delays_d1 = {'L2_basket': 0.1, 'L2_pyramidal': 0.1,
                      'L5_pyramidal': 0.1}
net_init.add_evoked_drive('evdist1',
                          mu=58.6539,
                          sigma=5.5810,
                          numspikes=1,
                          location='distal',
                          weights_ampa=weights_ampa_d1,
                          weights_nmda=weights_nmda_d1,
                          synaptic_delays=synaptic_delays_d1)

# Proximal 2
weights_ampa_p2 = {'L2_basket': 0.01, 'L2_pyramidal': 0.01, 'L5_basket': 0.01,
                   'L5_pyramidal': 0.01}
weights_nmda_p2 = {'L2_basket': 0.01, 'L2_pyramidal': 0.01, 'L5_basket': 0.01,
                   'L5_pyramidal': 0.01}
net_init.add_evoked_drive('evprox2',
                          mu=80,
                          sigma=1,
                          numspikes=1,
                          location='proximal',
                          weights_ampa=weights_ampa_p2,
                          weights_nmda=weights_nmda_p2,
                          synaptic_delays=synaptic_delays_p)

with MPIBackend(n_procs=n_procs, mpi_cmd='mpiexec'):
    init_dpl = simulate_dipole(net_init, tstop=tstop, n_trials=1)[0]
init_dpl.scale(scale_factor)
init_dpl.smooth(smooth_window_len)

Out:

MPI will run 1 trial(s) sequentially by distributing network neurons over 10 processes. /opt/anaconda3/envs/hc12/bin/nrniv:10: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html from pkg_resources import working_set /opt/anaconda3/envs/hc12/bin/nrniv:10: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html from pkg_resources import working_set /opt/anaconda3/envs/hc12/bin/nrniv:10: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html from pkg_resources import working_set /opt/anaconda3/envs/hc12/bin/nrniv:10: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html from pkg_resources import working_set /opt/anaconda3/envs/hc12/bin/nrniv:10: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html from pkg_resources import working_set /opt/anaconda3/envs/hc12/bin/nrniv:10: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html from pkg_resources import working_set /opt/anaconda3/envs/hc12/bin/nrniv:10: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html from pkg_resources import working_set /opt/anaconda3/envs/hc12/bin/nrniv:10: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html from pkg_resources import working_set /opt/anaconda3/envs/hc12/bin/nrniv:10: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html from pkg_resources import working_set /opt/anaconda3/envs/hc12/bin/nrniv:10: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html from pkg_resources import working_set numprocs=10 Loading custom mechanism files from /Users/austinsoplata/rep/brn/hnn-core/hnn_core/mod/arm64/.libs/libnrnmech.so Loading custom mechanism files from /Users/austinsoplata/rep/brn/hnn-core/hnn_core/mod/arm64/.libs/libnrnmech.so Loading custom mechanism files from /Users/austinsoplata/rep/brn/hnn-core/hnn_core/mod/arm64/.libs/libnrnmech.so Loading custom mechanism files from /Users/austinsoplata/rep/brn/hnn-core/hnn_core/mod/arm64/.libs/libnrnmech.so Loading custom mechanism files from /Users/austinsoplata/rep/brn/hnn-core/hnn_core/mod/arm64/.libs/libnrnmech.so Loading custom mechanism files from /Users/austinsoplata/rep/brn/hnn-core/hnn_core/mod/arm64/.libs/libnrnmech.so Loading custom mechanism files from /Users/austinsoplata/rep/brn/hnn-core/hnn_core/mod/arm64/.libs/libnrnmech.so Loading custom mechanism files from /Users/austinsoplata/rep/brn/hnn-core/hnn_core/mod/arm64/.libs/libnrnmech.so Building the NEURON model Loading custom mechanism files from /Users/austinsoplata/rep/brn/hnn-core/hnn_core/mod/arm64/.libs/libnrnmech.so Loading custom mechanism files from /Users/austinsoplata/rep/brn/hnn-core/hnn_core/mod/arm64/.libs/libnrnmech.so [Done] Trial 1: 0.03 ms... Trial 1: 10.0 ms... Trial 1: 20.0 ms... Trial 1: 30.0 ms... Trial 1: 40.0 ms... Trial 1: 50.0 ms... Trial 1: 60.0 ms... Trial 1: 70.0 ms... Trial 1: 80.0 ms... Trial 1: 90.0 ms... Trial 1: 100.0 ms... Trial 1: 110.0 ms... Trial 1: 120.0 ms... Trial 1: 130.0 ms... Trial 1: 140.0 ms... Trial 1: 150.0 ms... Trial 1: 160.0 ms... Trial 1: 170.0 ms... <hnn_core.dipole.Dipole at 0x11bcdb410>

Now we start the optimization!

First, we define a function that will tell the optimization routine how to modify the network drive parameters. The function will take in the Network object with no attached drives, and a dictionary of the parameters we wish to optimize.


        def set_params(net, params):

    # Proximal 1
    net.add_evoked_drive('evprox1',
                         mu=5.6813,
                         sigma=20.3969,
                         numspikes=1,
                         location='proximal',
                         weights_ampa=weights_ampa_p1,
                         weights_nmda=weights_nmda_p1,
                         synaptic_delays=synaptic_delays_p)

    # Distal
    net.add_evoked_drive('evdist1',
                         mu=58.6539,
                         sigma=5.5810,
                         numspikes=1,
                         location='distal',
                         weights_ampa=weights_ampa_d1,
                         weights_nmda=weights_nmda_d1,
                         synaptic_delays=synaptic_delays_d1)

    # Proximal 2
    weights_ampa_p2 = {'L2_basket':
                       params['evprox2_ampa_L2_basket'],
                       'L2_pyramidal':
                       params['evprox2_ampa_L2_pyramidal'],
                       'L5_basket':
                       params['evprox2_ampa_L5_basket'],
                       'L5_pyramidal':
                       params['evprox2_ampa_L5_pyramidal']}
    weights_nmda_p2 = {'L2_basket':
                       params['evprox2_nmda_L2_basket'],
                       'L2_pyramidal':
                       params['evprox2_nmda_L2_pyramidal'],
                       'L5_basket':
                       params['evprox2_nmda_L5_basket'],
                       'L5_pyramidal':
                       params['evprox2_nmda_L5_pyramidal']}
    net.add_evoked_drive('evprox2',
                         mu=params['evprox2_mu'],
                         sigma=params['evprox2_sigma'],
                         numspikes=1,
                         location='proximal',
                         weights_ampa=weights_ampa_p2,
                         weights_nmda=weights_nmda_p2,
                         synaptic_delays=synaptic_delays_p)

Then, we define the constraints.

The constraints must be a dictionary of tuples where the first value in each tuple is the lower bound and the second value is the upper bound for the corresponding parameter.

The following synaptic weight parameter ranges (units of micro-siemens) were chosen so as to keep the model in physiologically realistic regimes.


        constraints = dict({'evprox2_ampa_L2_basket': (0.01, 1.),
                    'evprox2_ampa_L2_pyramidal': (0.01, 1.),
                    'evprox2_ampa_L5_basket': (0.01, 1.),
                    'evprox2_ampa_L5_pyramidal': (0.01, 1.),
                    'evprox2_nmda_L2_basket': (0.01, 1.),
                    'evprox2_nmda_L2_pyramidal': (0.01, 1.),
                    'evprox2_nmda_L5_basket': (0.01, 1.),
                    'evprox2_nmda_L5_pyramidal': (0.01, 1.),
                    'evprox2_mu': (100., 120.),
                    'evprox2_sigma': (2., 30.)})

Now we define and fit the optimizer.


        from hnn_core.optimization import Optimizer

net = jones_2009_model()
optim = Optimizer(net, tstop=tstop, constraints=constraints,
                  set_params=set_params)
with MPIBackend(n_procs=n_procs, mpi_cmd='mpiexec'):
    optim.fit(target=exp_dpl, scale_factor=scale_factor,
              smooth_window_len=smooth_window_len)

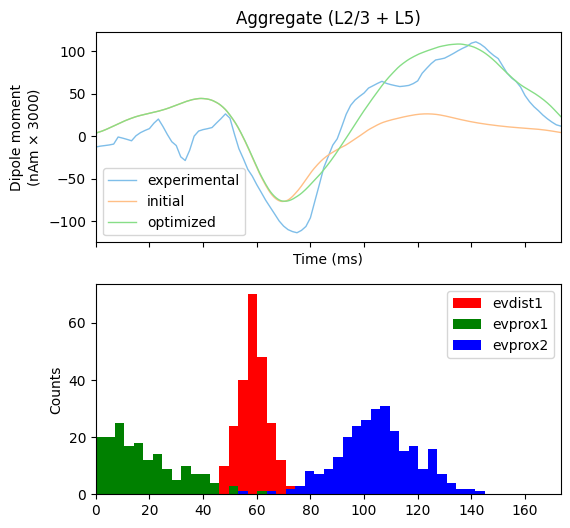

Finally, we can plot the experimental data alongside the post-optimization simulation dipole as well as the convergence plot.


        with MPIBackend(n_procs=n_procs, mpi_cmd='mpiexec'):
    opt_dpl = simulate_dipole(optim.net_, tstop=tstop, n_trials=1)[0]
opt_dpl.scale(scale_factor)
opt_dpl.smooth(smooth_window_len)

fig, axes = plt.subplots(2, 1, sharex=True, figsize=(6, 6))

# plot original
exp_dpl.plot(ax=axes[0], layer='agg', show=False, color='tab:blue')
init_dpl.plot(ax=axes[0], layer='agg', show=False, color='tab:orange')
opt_dpl.plot(ax=axes[0], layer='agg', show=False, color='tab:green')
axes[0].legend(['experimental', 'initial', 'optimized'])
optim.net_.cell_response.plot_spikes_hist(ax=axes[1], show=False)
plt.show()

Out:

MPI will run 1 trial(s) sequentially by distributing network neurons over 10 processes. /opt/anaconda3/envs/hc12/bin/nrniv:10: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html from pkg_resources import working_set /opt/anaconda3/envs/hc12/bin/nrniv:10: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html from pkg_resources import working_set /opt/anaconda3/envs/hc12/bin/nrniv:10: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html from pkg_resources import working_set /opt/anaconda3/envs/hc12/bin/nrniv:10: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html from pkg_resources import working_set /opt/anaconda3/envs/hc12/bin/nrniv:10: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html from pkg_resources import working_set /opt/anaconda3/envs/hc12/bin/nrniv:10: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html from pkg_resources import working_set /opt/anaconda3/envs/hc12/bin/nrniv:10: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html from pkg_resources import working_set /opt/anaconda3/envs/hc12/bin/nrniv:10: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html from pkg_resources import working_set /opt/anaconda3/envs/hc12/bin/nrniv:10: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html from pkg_resources import working_set /opt/anaconda3/envs/hc12/bin/nrniv:10: DeprecationWarning: pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html from pkg_resources import working_set numprocs=10 Loading custom mechanism files from /Users/austinsoplata/rep/brn/hnn-core/hnn_core/mod/arm64/.libs/libnrnmech.so Building the NEURON model Loading custom mechanism files from /Users/austinsoplata/rep/brn/hnn-core/hnn_core/mod/arm64/.libs/libnrnmech.so Loading custom mechanism files from /Users/austinsoplata/rep/brn/hnn-core/hnn_core/mod/arm64/.libs/libnrnmech.so Loading custom mechanism files from /Users/austinsoplata/rep/brn/hnn-core/hnn_core/mod/arm64/.libs/libnrnmech.so Loading custom mechanism files from /Users/austinsoplata/rep/brn/hnn-core/hnn_core/mod/arm64/.libs/libnrnmech.so Loading custom mechanism files from /Users/austinsoplata/rep/brn/hnn-core/hnn_core/mod/arm64/.libs/libnrnmech.so Loading custom mechanism files from /Users/austinsoplata/rep/brn/hnn-core/hnn_core/mod/arm64/.libs/libnrnmech.so Loading custom mechanism files from /Users/austinsoplata/rep/brn/hnn-core/hnn_core/mod/arm64/.libs/libnrnmech.so Loading custom mechanism files from /Users/austinsoplata/rep/brn/hnn-core/hnn_core/mod/arm64/.libs/libnrnmech.so Loading custom mechanism files from /Users/austinsoplata/rep/brn/hnn-core/hnn_core/mod/arm64/.libs/libnrnmech.so [Done] Trial 1: 0.03 ms... Trial 1: 10.0 ms... Trial 1: 20.0 ms... Trial 1: 30.0 ms... Trial 1: 40.0 ms... Trial 1: 50.0 ms... Trial 1: 60.0 ms... Trial 1: 70.0 ms... Trial 1: 80.0 ms... Trial 1: 90.0 ms... Trial 1: 100.0 ms... Trial 1: 110.0 ms... Trial 1: 120.0 ms... Trial 1: 130.0 ms... Trial 1: 140.0 ms... Trial 1: 150.0 ms... Trial 1: 160.0 ms... Trial 1: 170.0 ms... <Figure size 600x600 with 2 Axes>

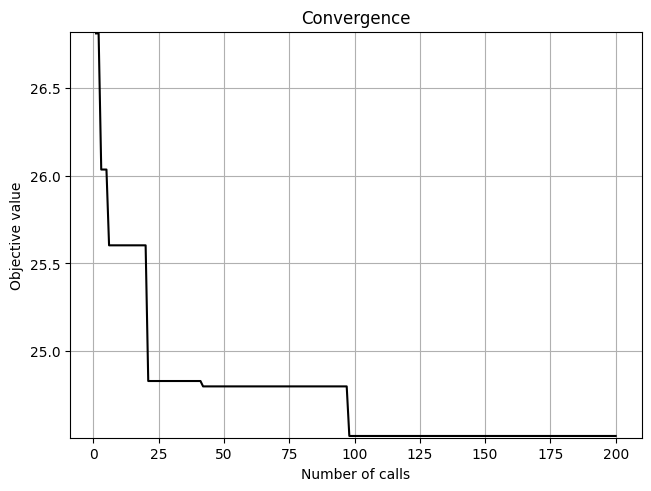

        fig1 = optim.plot_convergence(show=False)
plt.show()

Out:
